LCD and Operation Panel

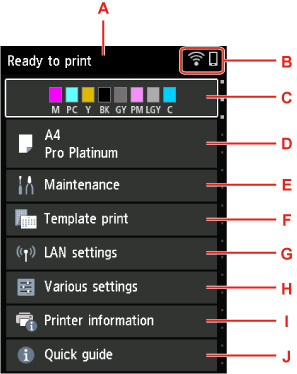

A: Printer status display area

Displays printer status, messages, and other information.

• Notification Messages

B: Network

Displays network status by the icon.

The icon differs depending on the network of use or the network status.

Wi-Fi is enabled and the printer is connected to the wireless router.

Note

• Depending on the signal state, the icon will change.

  (Signal strength: 81 % or more): You can use the printer over Wi-Fi without any problems.

  (Signal strength: 51 % or more): The problem such as the printer cannot print may occur according to the network status. We recommend placing the printer near the wireless router.

  (Signal strength: 50 % or less): The problem such as the printer cannot print may occur. Place the printer near the wireless router.

Wi-Fi is enabled but the printer is not connected to the wireless router.

Wired LAN is enabled.

Wireless Direct is enabled.

Network is disabled.

C: Ink status display area

Displays the ink status. Selecting this item enables you to check the remaining amount of ink and model number of ink tank.

• Checking Ink Level

D: Paper settings display area

Displays information about the paper in the top feed. Selecting this item enables you to specify the size and type of paper loaded in the top feed.

E: Maintenance

Select this item to perform maintenance of the printer.

F: Template print

You can print and make as lined or graph paper.

G: LAN settings

You can perform settings relating to network.

• Entering Numbers, Letters, and Symbols

H: Various settings

You can change printer settings such as settings when printing.

• Entering Numbers, Letters, and Symbols

I: Printer information

Displays printer information and error histories.

J: Quick guide

Displays how to operate the printer and QR code accessing to the Online Manual.

Note

• When printing is in progress, you cannot select grayed out items.
